WS600 Series woofers. (WPU09 Woofer Line) |
|
|
The NEW and Improved WPU09 series
has been renamed and re-rated to the WS600 series and
comes in 12,
15 and 18” Woofers for low and mid-bass professional sound
reinforcement. The now 600w RMS rated drivers are now offering high power capacity, outstanding low end
response and exceptionally smooth transition into the vocal
range. The WS600 is ideal for stage monitors as
well as front of house cabinets. This woofer exhibits
outstanding acoustics with work horse construction. Designed for
smaller enclosures, the WS600 is a versatile,
high performance woofer. General construction includes a sturdy
cast frame, an impregnated cloth surround, impregnated long
fiber paper cone and stable double spider.
The WS600
woofer incorporates the famous Selenium MCS (Multi Cooling System), which
increases heat dissipation and reduces operating temperature
increasing the output power with reduced power compression.
Where to buy
|
|
General
Information
|
12WS600
- Specifications:
- Size: 12"
- Nominal Impedance 8 OHMS
- Power Handling: 600 W RMS,
1,200 W MAX
- Sensitivity: 95db 1W/1M
- Fs: 46hz
- VAS: 2.11 cu ft
- Qts: .34
- Qes: .35
- Xmax: 4.3mm
- Frequency Response 45-3,000
HZ
- Magnet Weight: 94.2oz
- Voice Coil" 4"
(100mm)
- Gross Weight: 16.36 lbs
Manufacturers Tech Data PDF |
|

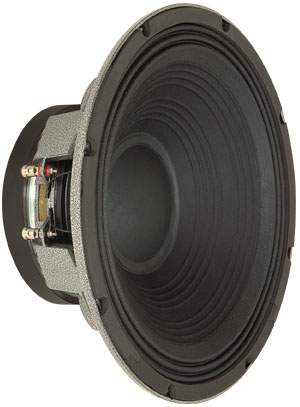

15WS600 -MCS®
- Specifications:
- Size: 15"
- Nominal Impedance 8 OHMS
- Power Handling: 600 W RMS,
1,200 W MAX
- Sensitivity: 97db 1W/1M
- Fs: 35hz
- VAS: 7.59 cu ft
- Qts: .35
- Qes: .36
- Xmax: 3.75mm
- Frequency Response 40-3,500
HZ
- Magnet Weight: 92oz
- Voice Coil" 4"
(100mm)
- Gross Weight: 21.50 lbs
- MCS - Multi Cooling System
Manufacturers Tech Data PDF |
The low profile of the 12WS600 is
perfect for your stage monitors.
|
|
18WS600-MCS®
- Specifications:
- Size: 18"
- Nominal Impedance 8 OHMS
- Power Handling: 600 W RMS,
1200 W MAX
- Sensitivity: 98db 1W/1M
- Fs: 34hz
- VAS: 11.16 cu ft
- Qts: .45
- Qes: .46
- Xmax: 4.3mm
- Frequency Response 35-3,000
HZ
- Magnet Weight: 92oz
- Voice Coil" 4"
(100mm)
- Gross Weight: 27.34 lbs
- MCS - Multi Cooling System
Manufacturers Tech Data PDF
|
More Information
- Recommended Accessories
|
|
|
|
Recommended Enclosures
|
|
Recommended Enclosures
|
*SLF - Selenium
Logo Free - Product without Selenium Logo printed on dustcap
|
|
|
