PW Line |
|
 |
|
The Selenium Loudspeakers Professional 8, 10, 12
and 15” woofers designed to meet a variety of PA needs for small
and medium-sized rooms, with excellent performance in the mid
and low frequency ranges. For sound reinforcement in nightclubs,
dancing halls, auditoriums, bands and also for studio monitors.
Its great efficiency in sound reproduction is due to the
excellent combination of the different components:
-
The light cone manufactured with long fiber
pulp together with a surround of impregnated fabric give the
array great stability, high yield and low distortion.
-
The voice coil is made of high temperature
wire, wound on ® Kapton former.
-
The epoxy painted reinforced steel frame
provides the array with high mechanical resistance.
-
The aluminum dust cap guarantees great voice
coil heat dissipation.
-
The use of highly resistant adhesives
guarantees optimal cohesion and durability of components.
Where to buy |
|
|
General
Information
|
|
8PW3/ 8PW3-SLF*
- Specifications:
- Size: 8"
- Nominal Impedance 8 OHMS
- Power Handling: 125 W RMS,
250 W MAX
- Sensitivity: 92db 1W/1M
- Fs: 69hz
- VAS: 1.13 cu ft
- Qts: .66
- Qes: .71
- Xmax: 2.35mm
- Frequency Response 70-8,000
HZ
- Magnet Weight: 20oz
- Voice Coil 1.3"
(100mm)
- Gross Weight: 4.41 lbs
Manufacturers
Tech Data PDF
|
|
10PW3 /
10PW3-SLF*
- Specifications:
- Size: 10"
- Nominal Impedance 8 OHMS
- Power Handling: 150 W RMS,
300 W MAX
- Sensitivity: 98db 1W/1M
- Fs: 73hz
- VAS: 1.02 cu ft
- Qts: .66
- Qes: .73
- Xmax: 1.25mm
- Frequency Response 60-6,000
HZ
- Magnet Weight: 44oz
- Voice Coil 1.8"
(100mm)
- Gross Weight: 8.91 lbs
Manufacturers
Tech Data PDF
|
|
asd |
|
12PW3/
12PW3-SLF*
- Specifications:
- Size: 12"
- Nominal Impedance 8 OHMS
- Power Handling: 175 W RMS,
400 W MAX
- Sensitivity: 97db 1W/1M
- Fs: 50hz
- VAS: 3.42 cu ft
- Qts: .69
- Qes: .75
- Xmax: 1.25mm
- Frequency Response 60-5,000
HZ
- Magnet Weight: 44oz
- Voice Coil 1.8"
(100mm)
- Gross Weight: 9.61 lbs
Manufacturers
Tech Data PDF
|
|

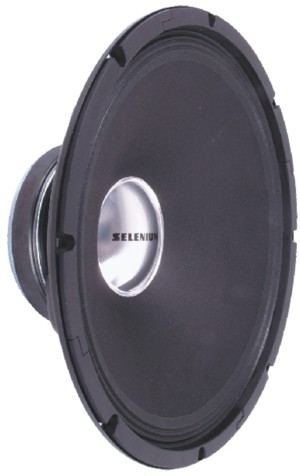

15PW3/
15PW3-SLF*
- Specifications:
- Size: 15"
- Nominal Impedance 8 OHMS
- Power Handling: 250 W RMS,
500 W MAX
- Sensitivity: 98db 1W/1M
- Fs: 37hz
- VAS: 9.67 cu ft
- Qts: .61
- Qes: .68
- Xmax: 3.0mm
- Frequency Response 40-4,000
HZ
- Magnet Weight: 57oz
- Voice Coil 2.4"
(100mm)
- Gross Weight: 13.45 lbs
Manufacturers
Tech Data PDF |
|
More Information
- Recommended Accessories
|
|
|
|
|
|
Recommended Enclosures
|
|
Recommended Enclosures
|
|
*SLF - Selenium
Logo Free - Product without Selenium Logo printed on dustcap
|
|
|
|
|
|
